| Specification | Details |
|---|---|
| Model | Evota‑EP86 |
| Operating System | Android 14 (Google EDLA Certified) |
| Sizes | 86″ |
| Display Technology | DLED IPS, Zero Bonding, 7H AG Toughened Glass |
| Screen Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 450 nits (typical) |
| Contrast Ratio | 1200:1 (min), 5000:1 (typical), Dynamic 100,000:1 |
| Touch Support | Up to 40-point IR Multi-touch |
| Audio Output | 2 × 20W Built-in Speakers |
| Connectivity | Wi-Fi 6, Bluetooth 5.0, LAN ×2, NFC, Light Sensor |
| Processor & GPU | Quad-core Cortex-A73, Mali-G52 MP2 |
| RAM & Storage | 8 GB RAM, 128 GB eMMC Storage |
| Touch Technology | Infrared Touch, 3 mm object, <5 ms, ±1.5 mm accuracy |
| Ports / I/O | Front: HDMI 2.0 ×1, USB-C 65W ×1 Rear: HDMI IN ×2, HDMI OUT ×1, VGA ×1, DP IN ×1, USB-C (data) ×1, USB-B (Touch) ×3, USB-A 3.0 ×3, USB-A 2.0 ×2, Audio In/Out ×1, RS-232 ×1, LAN IN/OUT ×2, SPDIF ×1, TF Slot ×3 |
| Camera Support | USB Webcam Compatible |
| Wireless Casting | Miracast, AirPlay, Chromecast Supported |
| Network Support | Dual Gigabit LAN, Wi-Fi 6, Bluetooth 5.0 |
| Preloaded Software | Whiteboard, Annotation, QR Share, AI Record, Remote Management |
| Mounting Type | VESA Wall Mount Included |
| Accessories Included | Stylus ×2, Remote, HDMI, VGA, USB-C, Power Cord, Wall Mount |
| Power Consumption | Typical ~260–300 W, Standby <0.5 W |
| Power Source | AC 100–240 V, 50/60 Hz |
| Weight | ~85 kg (Net) |
| Dimensions | 1980 × 1180 × 90 mm |
| Warranty | 3 Years Standard |
| Country of Origin | China |
About This Item

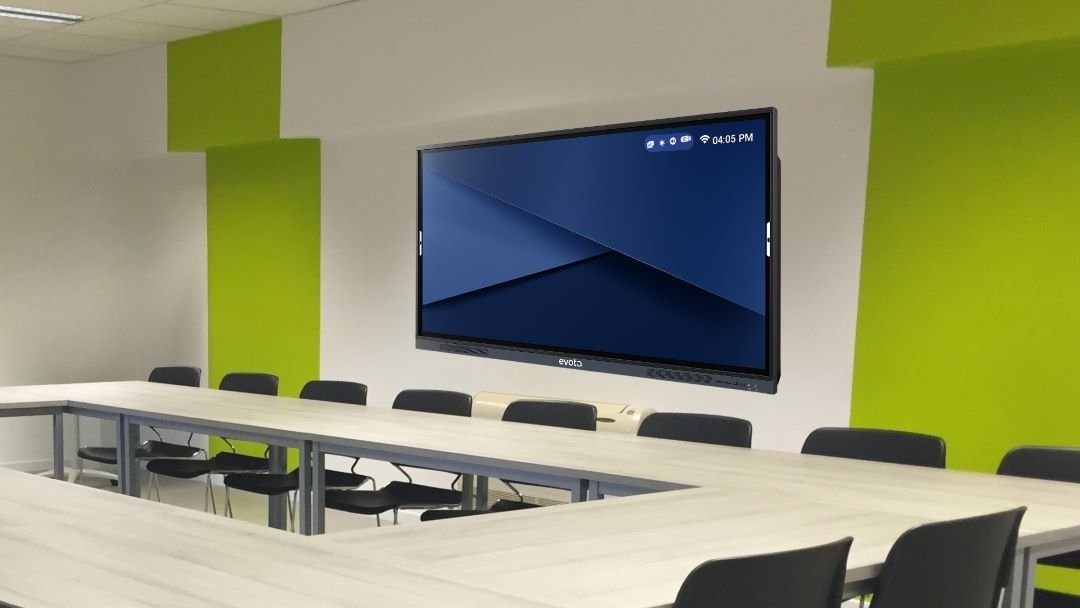

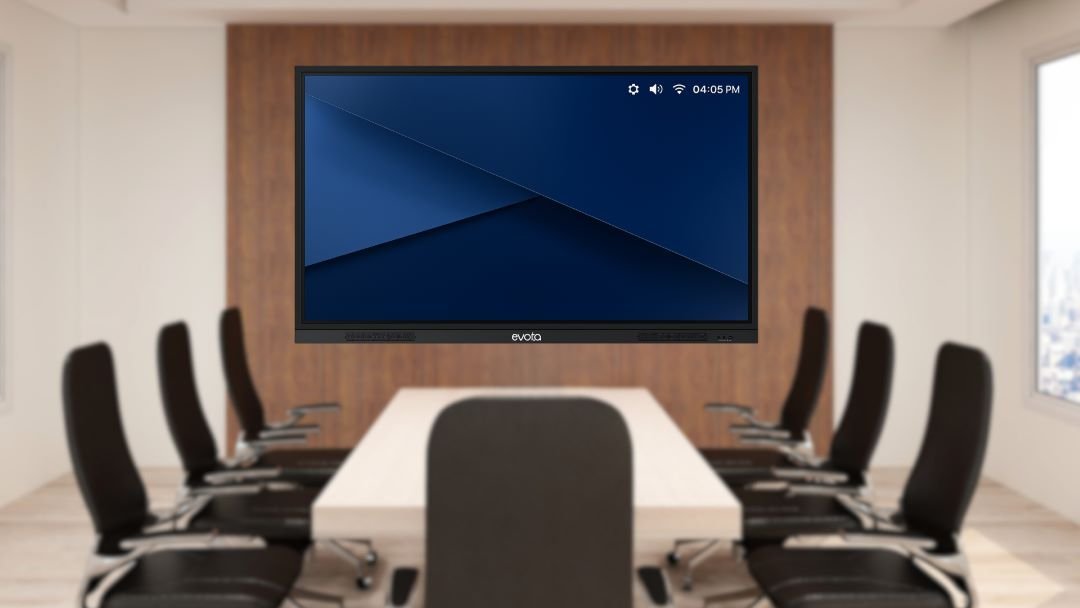

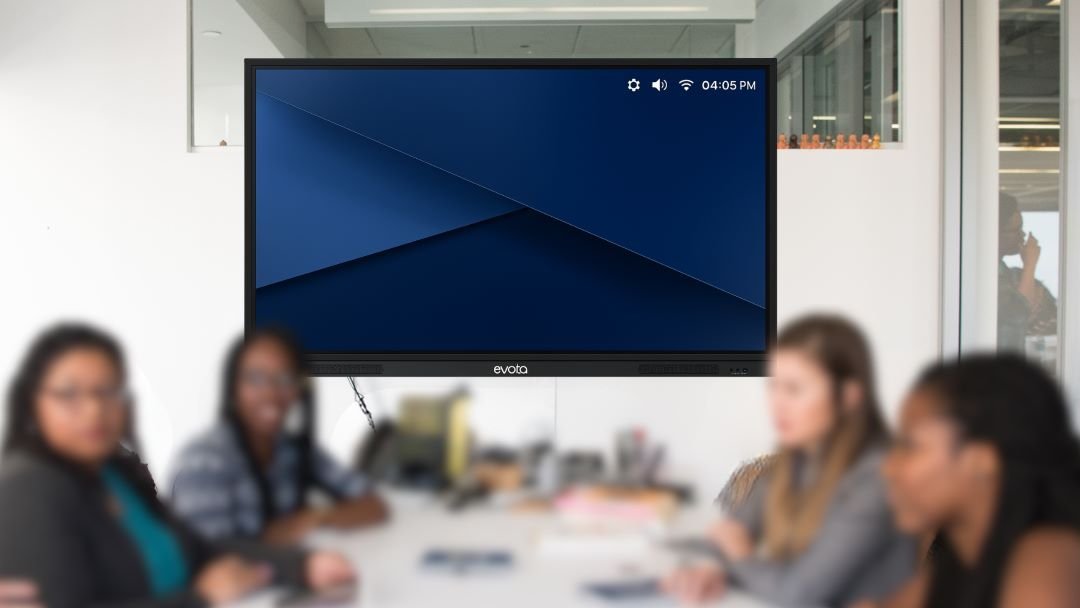

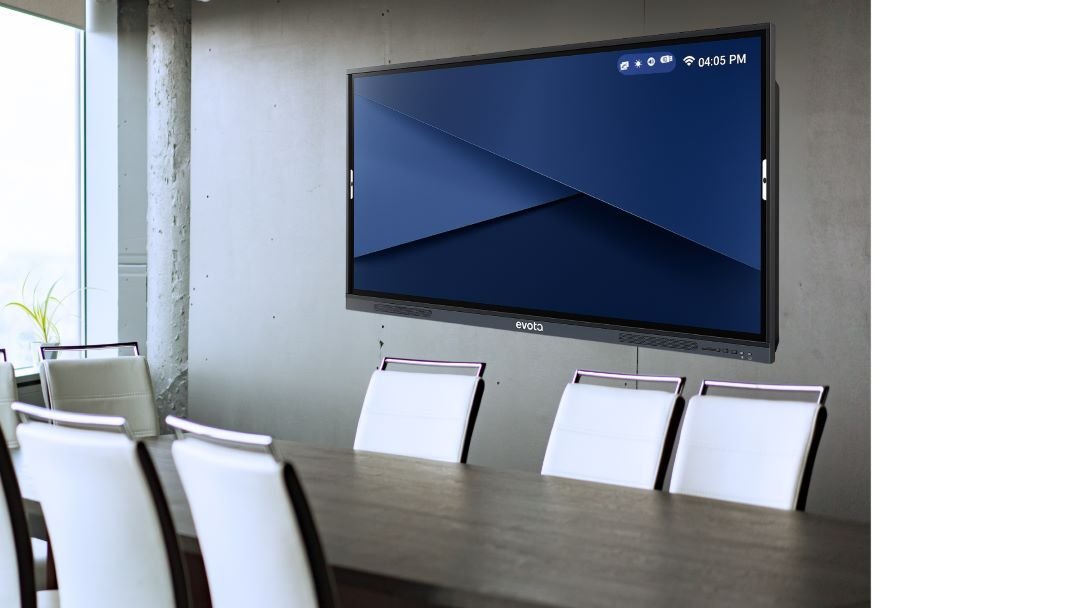

- MASSIVE 86″ 4K UHD INTERACTIVE DISPLAY — DLED IPS – Enormous DLED IPS screen with zero-bonding 7H anti-glare glass and 450 nits brightness provides ultra-clear, immersive visuals for large classrooms, corporate training halls, and conference rooms.
- ANDROID 14 EDLA CERTIFIED | 9 GB RAM | 128 GB STORAGE – Google-certified Android 14 on Quad-core Cortex-A73 processor ensures rapid performance, Google Play access, and long-term OS security for demanding educational environments.
- 40-POINT IR MULTI-TOUCH — <5MS LATENCY – Up to 40 simultaneous touch points with <5ms response and ±1.5mm precision on 7H toughened glass enables seamless full-class participation and real-time multi-user collaboration.
- WI-FI 6 + BLUETOOTH 5.0 + DUAL GIGABIT LAN + NFC – Full wireless and wired connectivity with built-in Miracast, AirPlay, and Chromecast for effortless BYOD screen sharing from any device.
- DUAL 20W STEREO SPEAKERS – 40W total audio fills even the largest classrooms with clear, balanced sound for lectures, video content, and interactive group sessions.
- COMPLETE I/O + VESA WALL MOUNT INCLUDED – USB-C 65W PD, HDMI IN×2, HDMI OUT, VGA, DisplayPort, USB-A 3.0×3, RS232, dual LAN, SPDIF — VESA wall mount bracket included for professional installation.
Frequently Asked Questions (FAQs)
1. What display quality does this interactive display offer?
The panel features a massive 86-inch 4K UHD DLED IPS display with zero-bonding 7H anti-glare glass and 450 nits brightness for exceptional clarity and viewing comfort.
2. What operating system powers the display?
It runs on Android 14 EDLA Certified with a Quad-core Cortex-A73 processor, 9GB RAM, and 128GB storage, ensuring smooth performance and access to Google services.
3. How responsive is the touch experience?
The display supports 40-point IR multi-touch with less than 5ms latency and ±1.5mm precision, enabling seamless multi-user interaction and collaboration.
4. Does the display support wireless screen sharing?
Yes, it includes Miracast, AirPlay, and Chromecast support for easy wireless content sharing from compatible devices.
5. What connectivity options are available?
The panel offers Wi-Fi 6, Bluetooth 5.0, NFC, Dual Gigabit LAN, USB-C 65W PD, HDMI, VGA, DisplayPort, USB ports, RS232, and SPDIF connectivity.
6. Does the display include built-in audio?
Yes, it comes with dual 20W stereo speakers providing 40W total audio output for large classrooms and conference rooms.
7. Which educational institutions across Bihar can benefit from this 86-inch interactive display?
Universities, colleges, schools, coaching institutes, and training centers across Patna, Tirhut, Magadh, Munger, Bhagalpur, Purnea, Kosi, Saran, and Darbhanga Divisions can utilize this display for immersive digital learning and collaborative teaching.
8. Which large venues across Bihar are ideal for deploying this interactive display?
Large lecture halls, smart classrooms, auditoriums, government training centers, corporate conference rooms, and seminar venues across Patna, Tirhut, Magadh, Munger, Bhagalpur, Purnea, Kosi, Saran, and Darbhanga Divisions can maximize the benefits of this 86-inch interactive display for presentations, training programs, and hybrid collaboration.
